IT Essentials Pod v6 - Quick Reference Page
This quick reference page provides a summary of the specifications of this topology. For a complete reference including installation details, please refer to the IT Essentials v6 Pod Planning and Installation Guide
| Topology | Supports | Documentation |
|---|---|---|
|
Planning and Installation Guide |
You may request virtual machine templates for the IT Essentials v6 Pod from CSSIA.

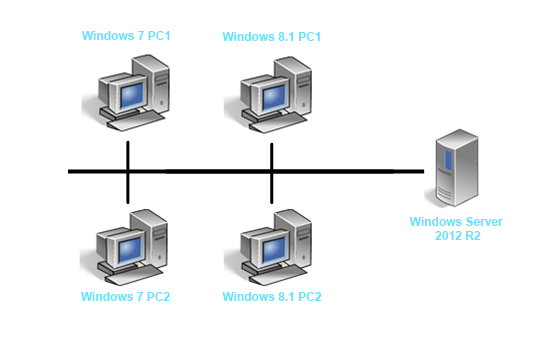

Lab Topology
Virtual Machines
The image names of the virtual machines in the ITEv6 Pod are provided in the table below.
| Image | Virtual Machine |
|---|---|
| Cisco_ITE_v6_Master_Win2012R2 | Windows Server 2012 R2 |
| Cisco_ITE_v6_Master_Win7_1 | Windows 7 PC 1 |
| Cisco_ITE_v6_Master_Win7_2 | Windows 7 PC 2 |
| Cisco_ITE_v6_Master_Win81_1 | Windows 8.1 PC 1 |
| Cisco_ITE_v6_Master_Win81_2 | Windows 8.1 PC 2 |
Storage Requirements
The ITEv6 Pod will consume 47 GB of storage per each user pod instance.
Details of the storage requirements for each of the lab virtual machines in the ITEv6 Pod are provided in the table below. Some fluctuation in the numbers may occur.
| Virtual Machine | Initial Master Pod (using full clones) GB |
|---|---|
| Windows Server 2012 R2 | 8 |
| Windows 7 PC 1 | 7.5 |
| Windows 7 PC 2 | 7.5 |
| Windows 8.1 PC 1 | 13 |
| Windows 8.1 PC 2 | 11 |
| Total Recommended | 47 |
Virtual Machine Templates
The virtual machines are made available as Open Virtualization Format (OVF) or Open Virtualization Archive (OVA) files. These files are available for download from EPNC (Education Pathway National Center).
To request access to the preconfigured virtual machine templates from EPNC:
- Go to the CSSIA Resources page: https://www.caeepnc.org/cssiaresources/
- Select CSSIA VM Image Sharing Agreement.
- Complete and submit your access request by following the instructions on the request form.
- EPNC will provide, via email, password-protected download links. Access to the download links is provided only to customers who are current with their NETLAB+ support contract and are participants in the appropriate partner programs (i.e., Cisco Networking Academy, Red Hat Academy, and/or Palo Alto Networks Cybersecurity Academy).
- Once all virtual machines have been downloaded, they can be deployed following the steps in the appropriate pod installation guide. Each virtual machine is deployed individually.
